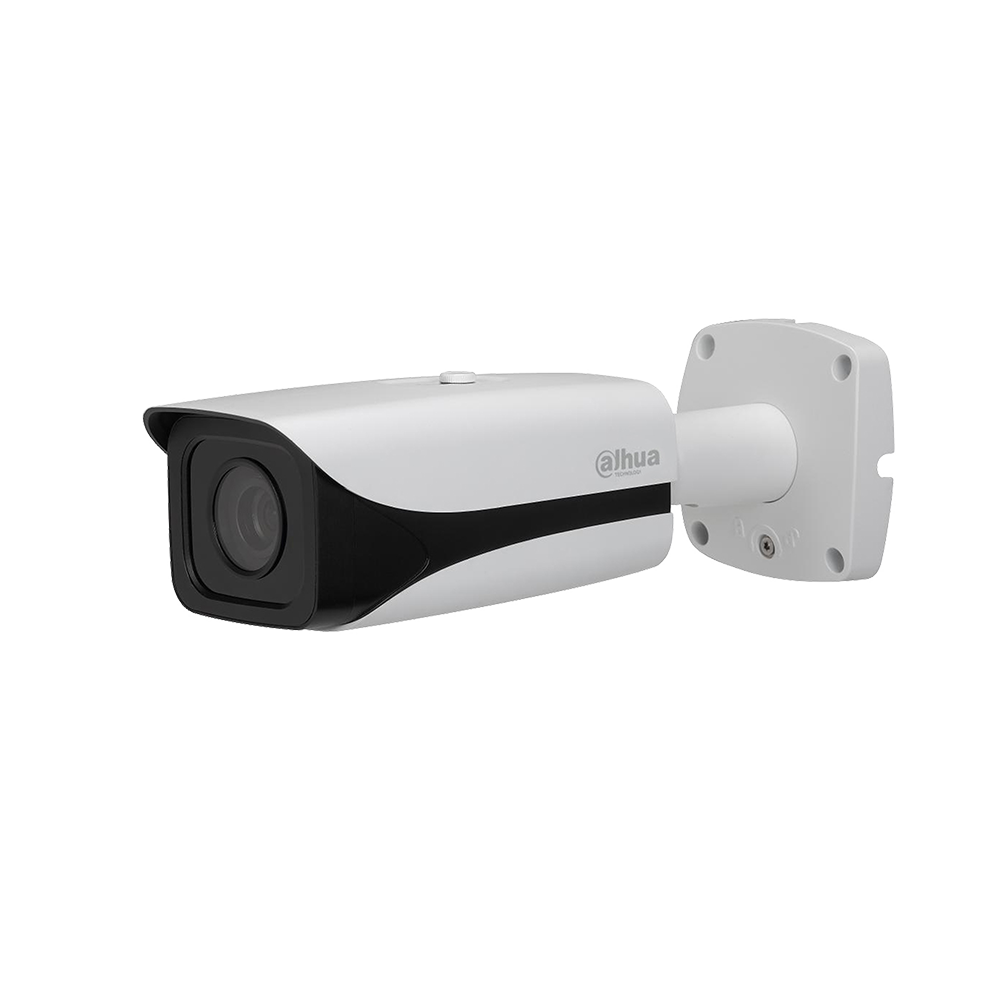

CAMERA IP HFW8231EP-Z5
-
Độ phân giải 2 Megapixel cảm biến STARVIS™ CMOS
-
kích thước 1/2.8” , 50/60fps@1080P(1920×1080)
-
Độ nhạy sáng tối thiểu 0.005Lux/F1.4( Color), 0Lux/F1.4(IR on)
-
Chế độ ngày đêm Auto(ICR) / Color / B/W
-
Chống ngược sáng thực WDR 120dB
-
Tự động cân bằng trắng (AWB), tự động bù sáng (AGC)
-
Chống ngược sáng(BLC), chống nhiễu (3D-DNR)
-
Công nghệ hồng ngoại thông minh,tầm xa hồng ngoại 50m
-
Ống kính điều chỉnh tiêu cự từ 2.7mm - 12mm(đối với dòng -Z); 7mm - 35mm(đối với dòng -Z5)
-
Hỗ trợ khe cắm thẻ nhớ lên đến 128GB
-
Chức năng thông minh: Nhận dạng khuôn mặt, phát hiện xâm nhập, thay đổi hiện trường
-
HEAT MAP, Missing Face Detection, People Counting
-
Chuẩn chống nước IP67, IK10, điện áp DC12V hoặc PoE (802.3at)(Class 4), công suất 4,9W
Danh mục : CAMERA DAHUA CAMERA IP
| Camera | |
| Image Sensor | 1/2.8”2Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| RAM/ROM | 1024MB/128MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.005Lux/F1.4( Color), 0Lux/F1.4(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 100m(328ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Motorized /Auto Iris(HALL) |
| Mount Type | Board-in |
| Focal Length | 7~35mm motorized |
| Max. Aperture | F1.4 |
| Angle of View | H: 35°~12°, V:19°~7° |
| Optical Zoom | 5x |
| Focus Control | Motorized |
| Close Focus Distance | 0.3m(0.98ft) |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
| Intelligence | |
| IVS (optional) | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P(1920×1080)/ 1.3M(1280×960)/
720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/ CIF(352×288/342×240) |
| Frame Rate | Main Stream: 1080P(1~50/60fps) |
| Sub Stream: D1 (1 ~ 50/60fps) | |
| Third Stream: 1080P(1~50/60fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~ 10240Kbps
H.265: 14~ 6144Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR(140dB)/ SSA |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | Support |
| Smart IR | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a/G.711Mu/AAC/ G.726 |
| Network | |
| Ethernet | RJ-45 (100/1000Base-T) |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | NAS
Local PC for instant recording Mirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE (EN 60950:2000)
UL:UL60950-1 FCC: FCC Part 15 Subpart B |
| Interface | |
| Video Interface | N/A |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm | 2/1 channel In/Out |
| Electrical | |
| Power Supply | DC12V, PoE+ (802.3at)(Class 4) |
| Power Consumption | <13W |
| Environmental | |
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | 273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”) |
| Net Weight | 1.12Kg (2.47lb) |
| Gross Weight | 1.52Kg (3.35lb) |
