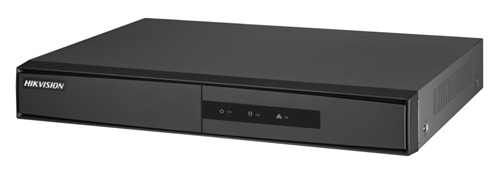

ĐẦU THU 7216HGHI-F1/N
- Đầu ghi hình Turbo HD 3.0
- Hỗ trợ 16 kênh HD-TVI/AHD/Analog/CVBS/IPC
- Chuẩn nén H264/H264+
- Độ phân giải ghi hình: 1080PLite@12fps | 720P@12fps
- Cổng ra HDMI/VGA@1920X1080 đồng thời
- Tối đa 128 kênh truy cập cùng lúc
- Hỗ trợ 1 cổng SATA hỗ trợ ổ cứng tối đa 6TB
- Nguồn cấp : 12VDC&12W (Chưa kèm ổ cứng)
Danh mục : CAMERA HIK VISION ĐẦU THU DVR
| Video/Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.264, H.264+ |
| Analog and HD-TVI video input | 16-ch, BNC interface (1.0Vp-p, 75 Ω) connection |
| Supported camera types | Support HDTVI input: 1080p/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, |
| Support AHD input: 720P/25Hz, 720P/30Hz, support CVBS input | |
| IP Video Input | 2-ch Up to 2MP resolution |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| HDMI/VGA Output | 1920 x 1080/ 60 Hz, 1280 x 1024/ 60 Hz, 1280 x 720/ 60 Hz, 1024 x 768/ 60 Hz |
| Recording resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; |
| When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF | |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N). When 1080p Lite mode enabled: 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-4 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Playback Resolution | 1080p lite/720p/WD1/4CIF/VGA/CIF |
| Synchronous Playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10/100Mbps self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| General | |
| Power Supply | 12VDC |
| Consumption | ≤ 20W(without hard disks) |
| Dimensions | 260 x 222 x 45 mm |
| Weight | ≤1.2kg |
Sản phẩm liên quan

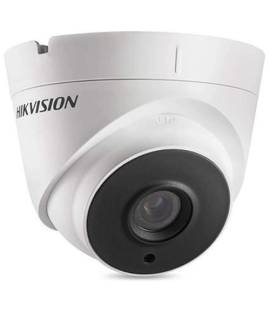

CAMERA TVI 2CE71H0T-PIRL
